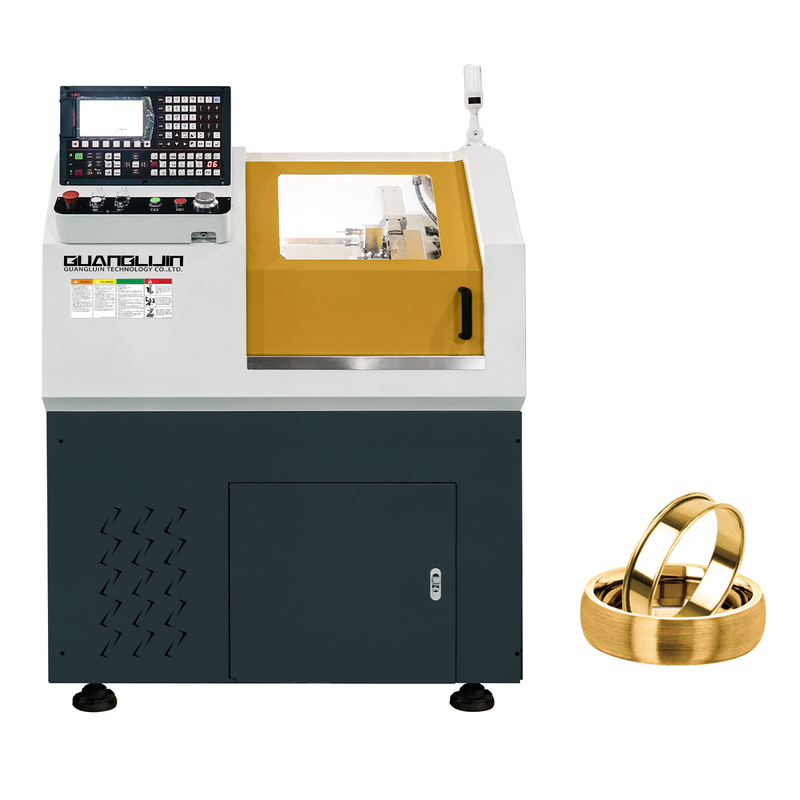

G2-200 CNC Lathe Machine with LNC T3600 System
  • G2-200 CNC Lathe Machine with LNC T3600 System
  • G2-200 CNC Lathe Machine with LNC T3600 System
  • G2-200 CNC Lathe Machine with LNC T3600 System
  • G2-200 CNC Lathe Machine with LNC T3600 System
  • G2-200 CNC Lathe Machine with LNC T3600 System
  • G2-200 CNC Lathe Machine with LNC T3600 System
  • G2-200 CNC Lathe Machine with LNC T3600 System
G2-200 CNC Lathe Machine with LNC T3600 System

G2-200 CNC Lathe Machine with LNC T3600 System

Place of Origin 101/F and 201/F,Building27,Lianchuang Science and Technology Park,21 BulanRoad, Xialilang Village,Nanwan Street, Shenzhen
Brand Name guanglijin
Certification CE Certificate
Model Number G2-200 Horizontal lathe two-axis machine
Product Details
Highlight:

CNC lathe machine with LNC T3600

,

G2-200 CNC lathe for jewelry

,

five axis jewelry carving machine

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Fumigation wooden frame - in line with international standards
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
100 units/month
Product Description
G2-200 Horizontal Lathe Two-Axis Machine CNC Marking Machine
Technical Parameters
No. Item Details
1 Transmission components Rexroth, Germany
Repeatability: +/-0.005mm
2 Operation LNC system
LNC T3600
3 Servo motor Innovance
400W
4 Spindle servo-drive
1.8KW, 2000rpm
rated torque 11.5N.m, max torque 8.75 N.m
5 Lubrication Timing automatic oiling
6 Tool quantity Up to 6 tools
7 Feeding auto-feeding
catch-and-pull 30mm each time
8 Spindle clamping max. 45mm
9 Tool holder 10*10, φ16
10 Spindle collet chuck penumatic
CK36
11 X axis stroke 195mm
12 Y axis stroke 155mm
13 Layout (mm) main body
850*1170*1750
14 Power requirement 220v/50hz
15 Body weight 1.0 tons
G2-200 CNC Lathe Machine with LNC T3600 System 0
Support and Services
  • Technical support
  • Installation
  • Training
  • Maintenance
  • Troubleshooting
  • Software upgrade
Packing and Shipping

Fumigation wooden case by sea or by air

Frequently Asked Questions
Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
