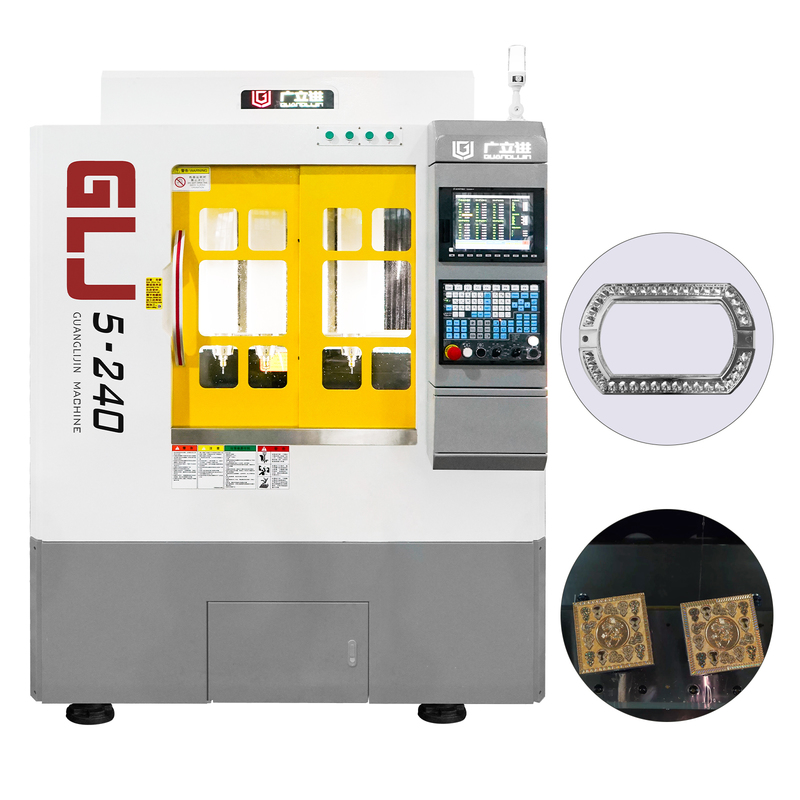

G5-240 four-station 5-axis machine

G5-240 four-station 5-axis machine

Place of Origin China
Brand Name GUANGLIJIN
Certification CE Certificate
Model Number G5-240 four-station 5-axis machine
Product Details
Highlight:

5-axis CNC machine with four stations

,

industrial G5-240 CNC machine

,

four-station five axis machine

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Fumigation wooden frame - in line with international standards
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
100 units/month
Product Description

Technical Parameters:

No. Item Details
1 B axis reducer Alpha, Germany Rated torque 88.9N.m, instaneous max. torque 312N.m,
rated speed 43 rpm, max. speed 85 rpm
2 C axis reducer Japan Rated torque15.3N.m, instaneous max. torque 53.5N.m,
rated speed 250 rpm, max. speed 500 rpm
3 Servo motor electric  400w/750w/1kw
4 Transmission
components		 Rexroth, Germany Repeatability: +/-0.005mm
5 Main spindle servo-drive 3.7kw, max. speed 40000 rpm water cooling with flow-alarm
6 Tool magazine
Up to 10 tools
7 Tool holder
ISO 20
8 Collet chuck
ER-16
9 Lubrication
Timing automatic oiling
10 Working flatness
+/-0.015mm
11 X axis stroke
240mm
12 Y axis stroke
210mm
13 Z axis stroke
230mm
14 Body weight
3.5 tons
15 Front door
single swinging door
16 Layout (mm) Main body 1800 width*1770 depth*2500 height
17 Power requirement
380v/50hz

G5-240 four-station 5-axis machine 0


Support and Services:

Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade

Packing and Shipping:

Fumigation wooden case by sea or by air


FAQ:

Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
