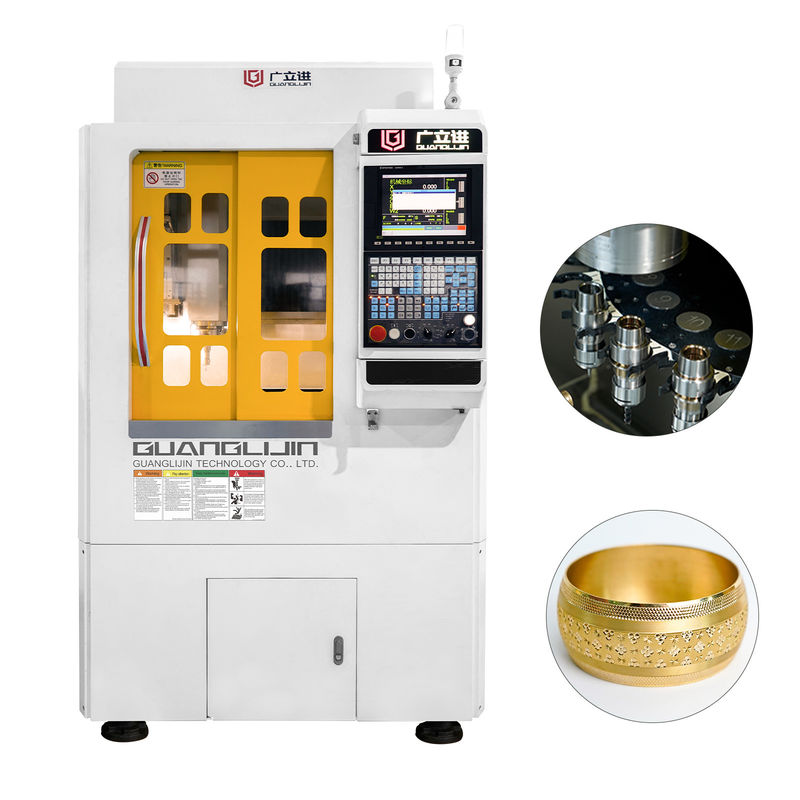

Product Features:
Precious Metal Dedicated Processing Solution
Precision turning for K-gold/platinum with material loss rate <0.3%
Exclusive tool compensation algorithm solves 18K gold ductility challenges
Complex Curved Surface One-Pass Forming
5-axis simultaneous machining enables 360° 3D engraving
0.01mm micro-carving precision perfectly renders 20+ classic band patterns (lace/wheat ear, etc.)
Special-Shaped Jewelry Manufacturing Expert
Innovative dual-spindle design: Roughing + finishing同步进行 simultaneously
Supports mass production of curved bracelets/hollow pendants and other special-shaped pieces
Hard Material Breakthrough Technology
Dedicated cutting parameter database for aerospace aluminum
60% increased processing efficiency for titanium steel/tungsten gold
Intelligent Production System
Output reaches 150-200 pieces per 8-hour shift (complexity-dependent)
Heritage & Innovation in Craftsmanship
Digital modeling of traditional hand-engraving patterns
Supports direct conversion of 3D designs to machining code
(Technical Highlights: Equipped with German Heidenhain system, high-precision optical tool setter, optional laser marking module for integrated processing-marking functionality)
Technical Parameters:
| No. |
Item |
Details |
| 1 |
B axis reducer |
Alpha, Germany |
Rated torque 88.9n.m,
Instaneous max. torque 312n.m,
Rated speed 43 rpm, max. speed 85 rpm |
| 2 |
C axis motor |
speed 3000rpm |
rated torque 15n.m |
| 3 |
Transmission components |
Rexroth, Germany |
Repeatability: +/-0.005mm |
| 4 |
Operation |
SYNTEC system |
220MA-10.4 inch screen operation box |
| 5 |
Servo motor |
|
750w |
| 6 |
Spindle |
electric |
6.0kw, max. speed 40000 rpm
water cooling with flow-alarm |
| 7 |
Tool magazine |
servo-drive |
Up to 12 engraving tools & 12 turning tools |
| 8 |
Tool holder |
|
HSK E32 |
| 9 |
Collet chuck |
|
ER-20 |
| 10 |
Lubrication |
|
Timing automatic oiling |
| 11 |
Working flatness |
|
+/-0.015mm |
| 12 |
X axis stroke |
|
500mm |
| 13 |
Y axis stroke |
|
150mm |
| 14 |
Z axis stroke |
|
200mm |
| 15 |
Body weight |
|
2.0 tons |
| 16 |
Front door |
|
sliding door |
| 17 |
Layout (mm) |
main body |
1300 width*1060 depth*2100 height |
| 18 |
Power requirement |
three-phase |
380v/50hz |
Support and Services:
Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade
Packing and Shipping:
Fumigation wooden case by sea or by air
FAQ:
Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
