Cnc Engraving Machine For Jewellery 9 Axis Cnc Machine
  • Cnc Engraving Machine For Jewellery 9 Axis Cnc Machine
  • Cnc Engraving Machine For Jewellery 9 Axis Cnc Machine

Cnc Engraving Machine For Jewellery 9 Axis Cnc Machine

Place of Origin China
Brand Name GUANGLIJIN
Certification CE Certificate
Model Number G9-550 Vertical double spindle carving and milling batch flower composite machine
Product Details
Highlight:

cnc engraving machine 9 axis

,

jewellery 9 axis cnc machine

,

9 axis cnc machine

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Fumigation wooden frame - in line with international standards
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
100 units/month
Product Description

Technical Parameters:

No. Item Details
1 B axis reducer Alpha, Germany Rated torque 88.9n.m,
Instaneous max. torque 312n.m,
Rated speed 43 rpm, max. speed 85 rpm
2 C axis motor speed 2500rpm rated torque 15n.m
3 W axis reducer Alpha, Germany Rated torque 88.9n.m,
Instaneous max. torque 312n.m,
Rated speed 43 rpm, max. speed 85 rpm
4 Z2 axis Rexroth, Germany Repeatability: +/-0.005mm
5 8th axis horizontal spindle ISO10 tool holder
6 9th axis vertical spindle HSK E32 tool holder
7 Transmission components Rexroth, Germany Repeatability: +/-0.005mm
8 Operation SYNTEC system 220MA-10.4 inch screen operation box,
max. extending 600mm on width at left side
9 Servo motor   400w/750w
10 Vertical spindle electric 3.7kw, max. speed 40000 rpm
water cooling with flow-alarm
11 Horizontal spindle electric 2.5kw, max. speed 60000 rpm
water cooling with flow-alarm
12 Tool magazine servo-drive 20 tools for vertical spindle (16 engraving + 4 turning),
12 tools for horizontal spindle
13 Tool holder   ISO20
14 Collet chuck   ER-16, ER-11
15 Lubrication   Timing automatic oiling
16 Working flatness   +/-0.005mm
17 X axis stroke   500mm
18 Y axis stroke   130mm
19 Z1 axis stroke   190mm
20 Z2 axis stroke   140mm
21 Body weight   2.0 tons
22 Front door   sliding door
23 Layout (mm) main body 1150 width*1130 depth*2100 height
24 Power requirement three-phase 380v/50hz

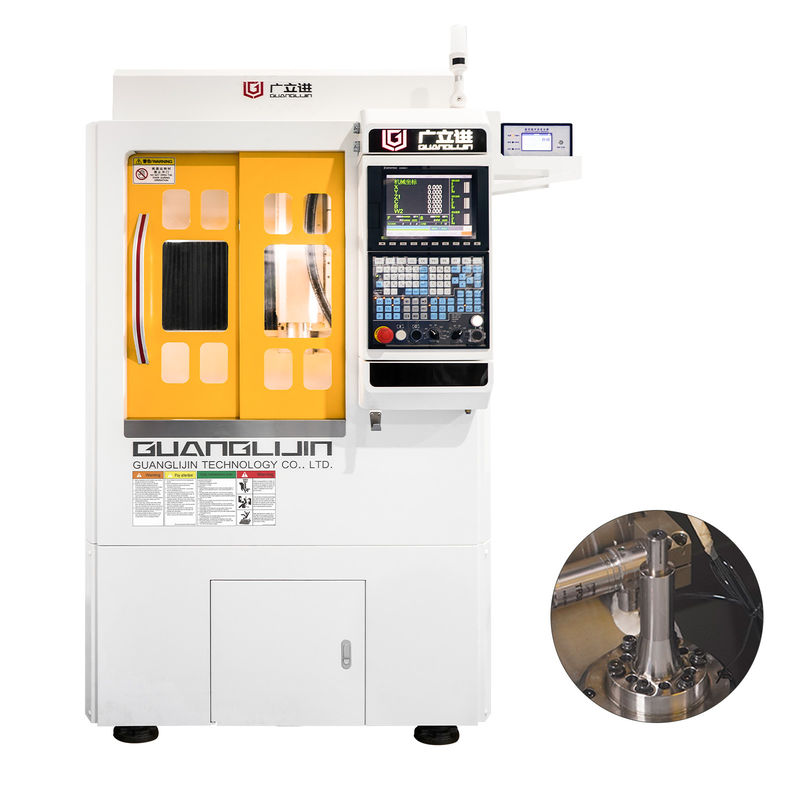

 Cnc Engraving Machine For Jewellery 9 Axis Cnc Machine 0

Support and Services:

Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade



Packing and Shipping:

Fumigation wooden case by sea or by air

FAQ:

Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
