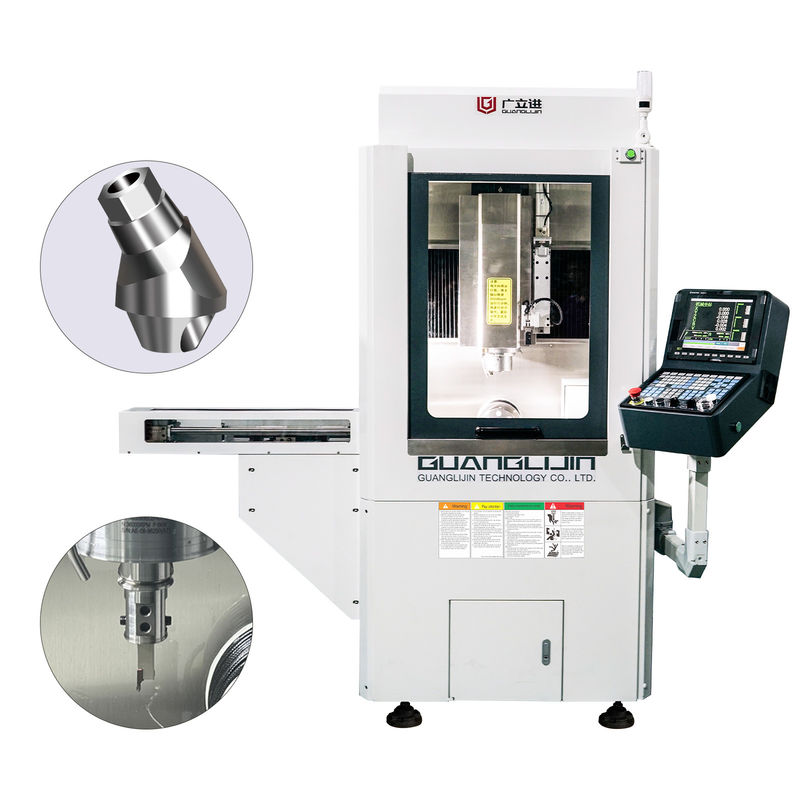

Four Axis Dental Milling Units Lab Milling Machine In Dentistry

Product Description:

Medical Dedicated Turning-Milling Composite Denture Processing Machine – Revolutionary Processing Technology for Intelligent and Precise Denture Manufacturing

Disrupting traditional processing methods with innovative turning-milling composite technology! Simply clamp the titanium rod raw material once to complete all processing steps, eliminating the cumbersome multi-step process of traditional lathe rough machining + CNC precision machining. Medical-grade machining accuracy reaches ±0.01mm, ensuring every denture is flawless.

【Core Advantages】

Integrated Processing: Turning-milling composite technology eliminates secondary clamping, improving efficiency by 200%

Intelligent Feeding System (Optional): Supports 24/7 uninterrupted automated production

Extended Operation: Standard version enables continuous automatic processing for over 8 hours

Fully Enclosed Servo High-Speed Rotary Tool Magazine: 0.8-second ultra-fast tool change with dustproof and moisture-proof design

Military-Grade Stability: Maintains precision as reliable as ever even under high-intensity machining for a decade

User-Friendly Operation: 10.4-inch smart touchscreen, easy for beginners to master

【Applications】
▶ Dental Implants ▶ Full Zirconia Crowns ▶ Titanium Abutments ▶ Occlusal Guides ▶ Customized Frameworks

【Performance Assurance】

Fully sealed protection design, IP54 protection rating

Servo-driven system ensures smooth and reliable operation

Intelligent temperature control system guarantees stability during prolonged machining

Technical Parameters:

No.	Item	Details
1	B axis reducer	Alpha, Germany	rated torque 88.9n.m, Instaneous max. torque 312n.m, Rated speed 43 rpm, max. speed 85 rpm
2	C axis motor	speed 3000rpm	rated torque 15n.m
3	Transmission components	Rexroth, Germany	Repeatability: +/-0.003mm
4	Operation	SYNTEC system	220MA-10.4 inch screen operation box, max. extending 600mm on width at left side
5	Servo motor	Yaskawa, Japan	400w/ 750w
6	Spindle	electric	8.0kw, max. speed 36000 rpm water cooling with flow-alarm
7	Tool magazine	servo-drive	Up to 16 milling tools and 4 turning tools
8	Tool calibration	automatic setting	50 - 200mm/min, repeatability: 0.002mm
9	Tool holder		HSK-E32
10	Collet chuck		ER-20
11	Lubrication		Timing automatic oiling
12	Working flatness		+/-0.005mm
13	X axis stroke		400mm
14	Y axis stroke		155mm
15	Z axis stroke		235mm
16	Body weight		1.5 tons
17	Front door	penumatic driving	extending 600mm upward when opened
18	Layout (mm)	main body	min.: 1100 width*1300 depth*2100 height max.: 2400 width*1300 depth*2700 height
19	Power requirement	three-phase	380v/50hz
20	Feeding	automatic feeding	Penumatic driving, extended 700mm on width at right side
21	Collecting	automatic collecting	Penumatic driving



Support and Services:

Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade



Packing and Shipping:

Fumigation wooden case by sea or by air



FAQ:

Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
