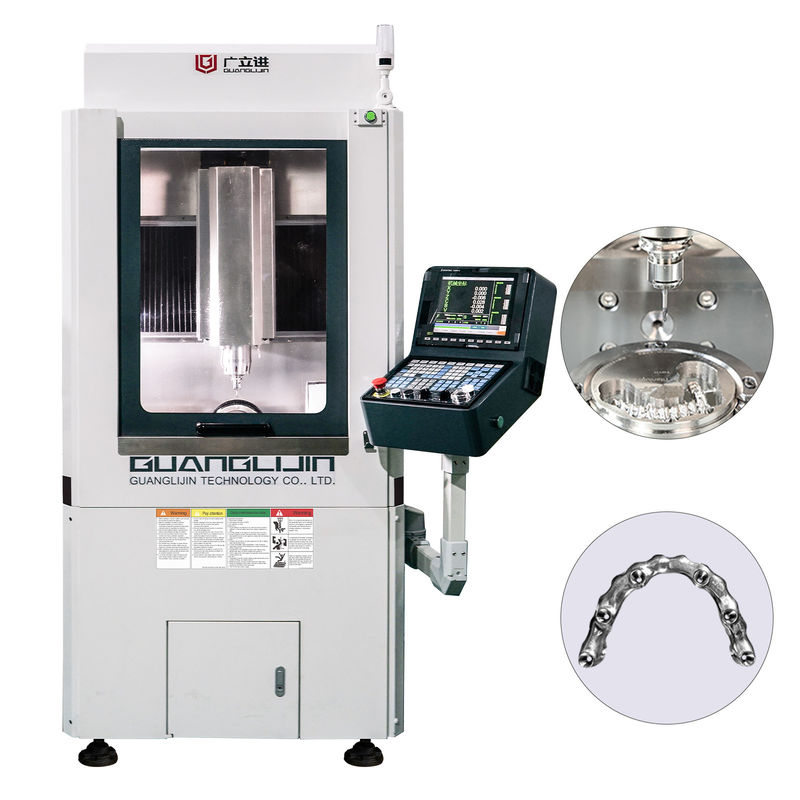

Dental Lab CNC Milling Machine
>
|
|
| Place of Origin | China |
| Brand Name | GUANGLIJIN |
| Certification | CE Certificate |
| Model Number | P50 Five-axis all-round cutting machine |
| No. | Item | Details | |
| 1 | A axis reducer | Alpha, Germany | rated torque 88.9n.m, Instaneous max. torque 312n.m, Rated speed 43 rpm, max. speed 85 rpm |
| 2 | B axis reducer | Alpha, Germany | 1 arcmin accuracy rated torque 44.6n.m, Instaneous max. torque 156n.m, Rated speed 43 rpm, max. speed 85 rpm |
| 3 | Transmission components | Rexroth, Germany | Repeatability: +/-0.003mm |
| 4 | Operation | SYNTEC system | 220MA-10.4 inch screen operation box, max. extending 600mm on width at left side |
| 5 | Servo motor | Yaskawa, Japan | 400w/ 200w |
| 6 | Spindle | electric | 3.7kw, max. speed 50000 rpm water cooling with flow-alarm |
| 7 | Tool magazine | servo-drive | Up to 15 milling tools |
| 8 | Tool calibration | automatic setting | 50 - 200mm/min, repeatability: 0.002mm |
| 9 | Tool holder | HSK-E25 | |
| 10 | Collet chuck | ER-16 | |
| 11 | Lubrication | Timing automatic oiling | |
| 12 | Working flatness | +/-0.005mm | |
| 13 | X axis stroke | 400mm | |
| 14 | Y axis stroke | 155mm | |
| 15 | Z axis stroke | 235mm | |
| 16 | Body weight | 1.5 tons | |
| 17 | Front door | penumatic driving | extending 600mm upward when opened |
| 18 | Layout (mm) | main body | min.: 1100 width*1300 depth*2100 height max.: 1700 width*1300 depth*2700 height |
| 19 | Power requirement | three-phase | 380v/50hz |
Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade
Fumigation wooden case by sea or by air
Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
