Product Description:

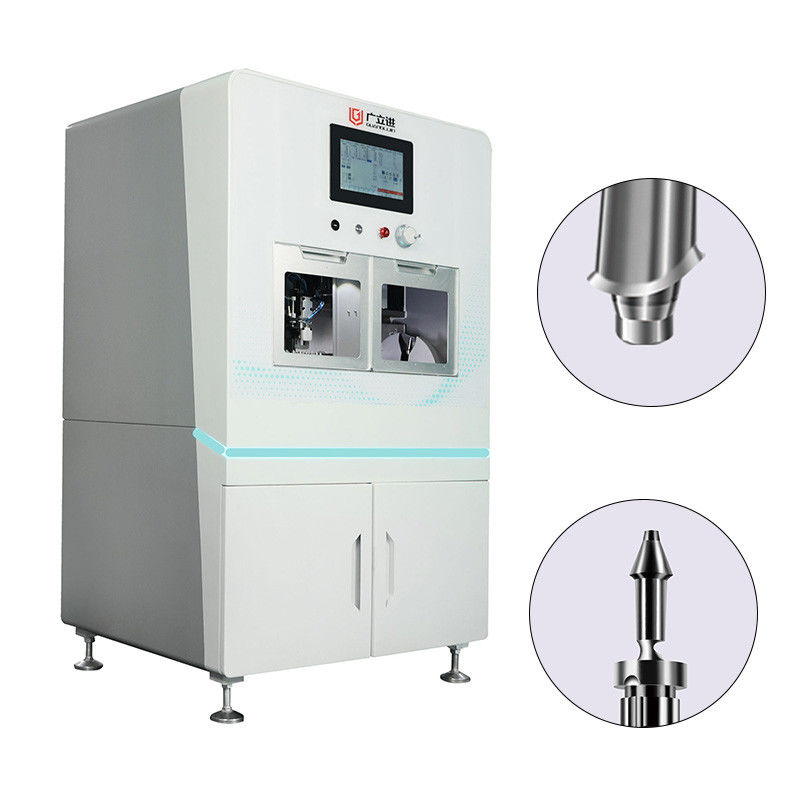

This automatic feeding titanium column machine is specifically designed for precision cutting and grinding of titanium alloy materials, integrating high-precision machining technology with efficient production. It is dedicated to providing high-quality aesthetic dental restoration products (such as prefabricated abutments and customized abutments) for the field of dental restoration. Its cast iron body structure significantly enhances equipment stability, offering superior vibration resistance and durability compared to traditional models, ensuring consistent machining accuracy during prolonged operation.
Core Advantages
High-Precision Cutting Technology
Utilizes advanced tool systems and dynamic grinding processes to achieve micron-level machining of titanium alloy materials, meeting the stringent requirements for surface smoothness and fit accuracy in implant restorations.
Intelligent Automatic Feeding
Equipped with an integrated automated feeding module to minimize manual intervention and enhance continuous operation efficiency, making it particularly suitable for rapid mass production of prefabricated abutments.
Industrial-Grade Stability
The high-rigidity cast iron body effectively absorbs machining vibrations, paired with a high-precision guide rail system to ensure long-term stability for complex surface machining.
User-Friendly Design
Streamlines operational processes, supports quick tool changes and parameter presets, lowers technical barriers, and shortens technician training cycles.
Applications
Ideal for dental laboratories and denture processing centers, specializing in the precision manufacturing of high-end products such as titanium alloy abutments and aesthetic restoration bridges, enhancing both the functionality and long-term wearing comfort of restorations.
Technical Parameters:
| No. |
Item |
Details |
| 1 |
B axis reducer |
Alpha, Germany |
Rated torque 44.6n.m,
Instaneous max. torque 156n.m,
Rated speed 43 rpm, max. speed 85 rpm |
| 2 |
Transmission components |
Rexroth, Germany |
Repeatability: +/-0.005mm |
| 3 |
Operation |
Lynuc system |
N3ET 10.1'' touch screen |
| 4 |
Servo motor |
|
400w/ 200w |
| 5 |
Spindle |
electric |
2.5kw, max. speed 60000 rpm
water cooling with flow-alarm |
| 6 |
Tool magazine |
servo-drive |
Up to 12 milling tools |
| 7 |
Tool holder |
|
ISO 10 |
| 8 |
Working flatness |
|
+/-0.005mm |
| |
Lubrication |
|
Timing automatic oiling |
| 9 |
X axis stroke |
|
220mm |
| 10 |
Y axis stroke |
|
105mm |
| 11 |
Z axis stroke |
|
115mm |
| 12 |
Body weight |
|
600 kg |
| 13 |
Layout (mm) |
|
920 width*750 depth*1550 height |
| 14 |
Power requirement |
|
220v/50hz |
| 15 |
Tool calibration |
automatic setting |
50 - 200mm/min, repeatability: 0.002mm |
| 16 |
Loading & unloading |
big round movable tray with 80 location for pre-milled abutment titanium blank |
Japan reducer with servo motor driving for pick-up and drop-off |
Support and Services:
Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade
Packing and Shipping:
Fumigation wooden case by sea or by air
FAQ:
Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
