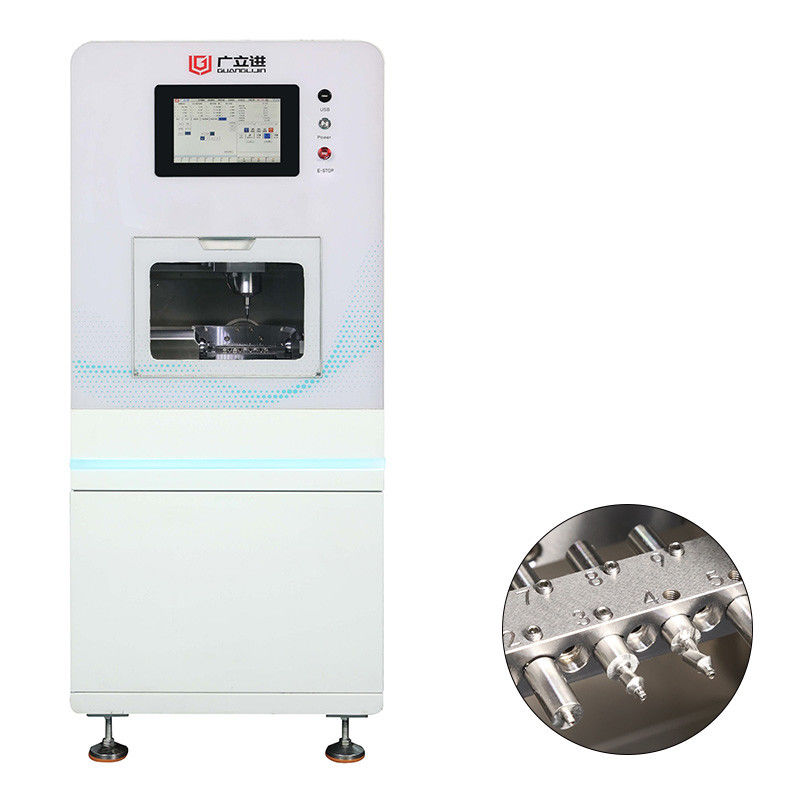

Advanced Rhenium Sodium System Dental Milling Machine Dental Milling Machine
  • Advanced Rhenium Sodium System Dental Milling Machine Dental Milling Machine
  • Advanced Rhenium Sodium System Dental Milling Machine Dental Milling Machine
Advanced Rhenium Sodium System Dental Milling Machine Dental Milling Machine

Advanced Rhenium Sodium System Dental Milling Machine Dental Milling Machine

Place of Origin China
Brand Name GUANGLIJIN
Certification CE Certificate
Model Number S45 Four-Axis All-Round Cutting Machine
Product Details
Highlight:

Advanced Dental Milling Machine

,

Rhenium Sodium Dental Milling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Fumigation wooden frame - in line with international standards
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
100 units/month
Product Description





Technical Parameters:

No. Item Details
1 B axis reducer Alpha, Germany Rated torque 44.6n.m,
Instaneous max. torque 156n.m,
Rated speed 43 rpm, max. speed 85 rpm
2 Transmisson components Rexroth, Germany Repeatability: +/-0.005mm
3 Operation Lynuc system N3ET 10.1'' touch screen
4 Servo motor   400w/ 200w
5 Spindle electric 1.8kw, max. speed 60000 rpm
water cooling with flow-alarm
6 Tool magazine servo-drive Up to 15 milling tools
7 Tool holder   ISO 10
8 Working flatness   +/-0.005mm
  Lubrication   Timing automatic oiling
9 X axis stroke   220mm
10 Y axis stroke   105mm
11 Z axis stroke   115mm
12 Body weight   600 kg
13 Layout (mm)   620 width*740 depth*1520 height
14 Power requirement   220v/50hz
15 Tool calibration automatic setting 50 - 200mm/min, repeatability: 0.002mm
Advanced Rhenium Sodium System Dental Milling Machine Dental Milling Machine 0

Support and Services:

Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade



Packing and Shipping:

Fumigation wooden case by sea or by air



FAQ:

Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
