Jewelry CNC Carving Machine
>
|
|
| Place of Origin | China |
| Brand Name | GUANGLIJIN |
| Certification | CE Certificate |

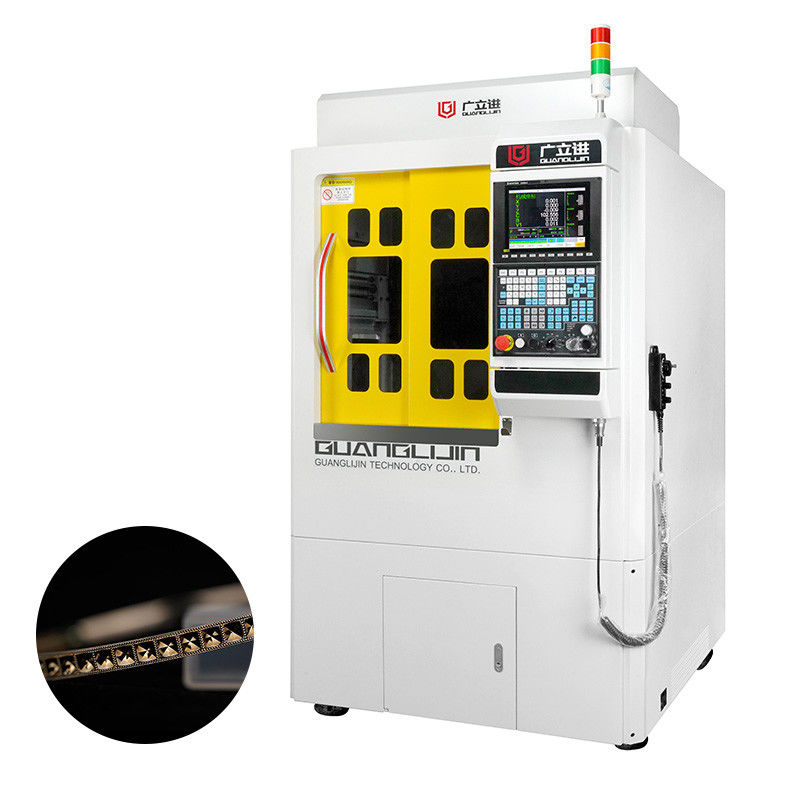

| Model Number | G7-500 Laser Engraving And Milling Batch Machine |
| No. | Item | Details | |
| 1 | C axis reducer | Japan | rated torque 12.7n.m, Instaneous max. torque 44.6n.m, Rated speed 300 rpm, max. speed 600 rpm |
| 2 | Transmission components | Rexroth, Germany | Repeatability: +/-0.005mm |
| 3 | Operation | Rexroth system | P911174057 CML75.1-3P-905-NA-NNNN-NW |
| 4 | Servo motor | Rexroth, Germany | 400w |
| 5 | Main spindle | electric | 3.7kw, max. speed 40000 rpm water cooling with flow-alarm |
| 6 | Tool magazine | servo-drive | Up to 15 tools |
| 7 | Tool calibration | auto setting | speed 50-200mm/min, accuracy 0.002mm |
| 8 | Tool holder | ISO20 | |
| 9 | Collet chuck | ER-16 | |
| 10 | Lubrication | Timing automatic oiling | |
| 11 | Working flatness | +/-0.015mm | |
| 12 | X axis stroke | 500mm | |
| 13 | Y axis stroke | 130mm | |
| 14 | Z1 axis stroke | 250mm | |
| 15 | Z2 axis stroke | 155mm | |
| 16 | Body weight | 1.6 tons | |
| 17 | Front door | sliding door | |
| 18 | Layout (mm) | main body | 800 width*1000 depth*2100 height |
| 19 | Power requirement | three-phase | 380v/50hz |
Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade
Fumigation wooden case by sea or by air
Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
