Jewelry CNC Carving Machine
>
|
|
| Place of Origin | China |
| Brand Name | GUANGLIJIN |
| Certification | CE Certificate |

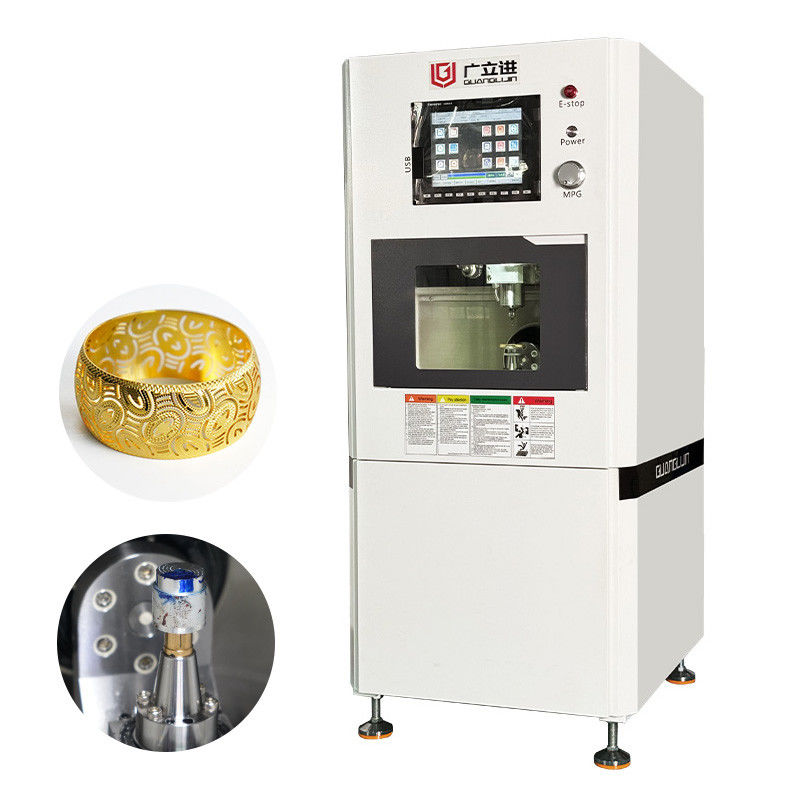

| Model Number | G7-300 Micro Seven Axis Engraving And Milling Machine |
| No. | Item | Details | |
| 1 | B axis reducer | Alpha, Germany | Rated torque 44.6n.m, Instaneous max. torque 156n.m, Rated speed 43 rpm, max. speed 85 rpm |
| 2 | C axis reducer | Japan | Rated torque 6.4n.m, Instaneous max. torque 22.3n.m, Rated speed 300 rpm, max. speed 600 rpm |
| 3 | 6th axis | Rexroth, Germany | Repeatability: +/-0.005mm |
| 4 | 7th axis spindle | servo motor | max. 10000rpm, max. dia. of round cutter: 60mm min. dia. of round cutter: 40mm |
| 5 | Transmission components | Rexroth, Germany | Repeatability: +/-0.005mm |
| 6 | Operation | SYNTEC system | 10.1'' touch screen |
| 7 | Servo motor | 400w/ 200w | |
| 8 | Main spindle | electric | 2.5kw, max. speed 60000 rpm water cooling with flow-alarm |
| 9 | Tool magazine | servo-drive | Up to 12 tools |
| 10 | Tool holder | ISO 10 | |
| 11 | Collet chuck | ER-11 | |
| 12 | Lubrication | Timing automatic oiling | |
| 13 | Working flatness | +/-0.005mm | |
| 14 | X axis stroke | 300mm | |
| 15 | Y axis stroke | 105mm | |
| 16 | Z axis stroke | 115mm | |
| 17 | Body weight | 0.6 tons | |
| 18 | Front door | single swinging door | |
| 19 | Layout (mm) | main body | 700 width*880 depth*1560 height |
| 20 | Power requirement | 220v/50hz | |
Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade
Fumigation wooden case by sea or by air
Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
