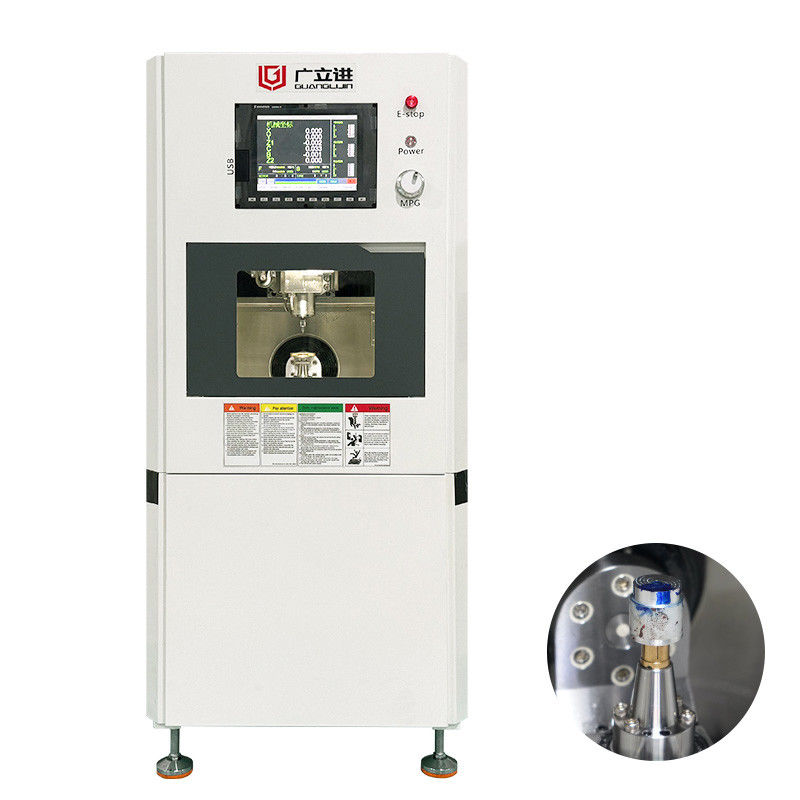

This jewelry manufacturing machine is meticulously designed for the precious metal processing industry, integrating high precision, efficiency, and stable performance. It is suitable for various scenarios such as jewelry stores, factories, and office buildings, empowering users to achieve high-quality precious metal processing with ease.
Core Advantages
Ultra-High Recovery Rate: Metal recovery rate exceeds 99.95%, significantly reducing material waste and saving costs.
Stable & Durable: The cast-iron body, combined with original German Rexroth ball guide rails, lead screws, and transmission components, ensures long-term stable operation.
Precision Machining: Equipped with imported Japanese reducers for the 4th and 5th axes, delivering high precision to meet the demands of intricate jewelry designs.
Efficient Tool Change: A fully enclosed servo-driven high-speed rotary tool magazine accommodates 12 tools, with a tool change time of just 5-6 seconds, greatly enhancing productivity.
Intelligent Control: Features the Lenake system with a touch-screen interface for intuitive operation, allowing even beginners to get started quickly.
Compact & Stylish: The sleek and space-saving design, with a modern aesthetic, fits perfectly in jewelry stores, factories, and high-end office environments.
Applications
Supports flat surfaces, bracelet and ring engraving, and can create intricate patterns such as dragons & phoenixes, floral motifs, and geometric textures.
Ring/Bracelet Pattern Carving: Uniform inner and outer wall processing with no dead angles.
Mirror Polishing: High-gloss surface finishing in a single step.
Technical Parameters:
| No. |
Item |
Details |
| 1 |
B axis reducer |
Alpha, Germany |
Rated torque 44.6n.m,
Instaneous max. torque 156n.m,
Rated speed 43 rpm, max. speed 85 rpm |
| 2 |
C axis reducer |
Japan |
Rated torque 6.4n.m,
Instaneous max. torque 22.3n.m,
Rated speed 300 rpm, max. speed 600 rpm |
| 3 |
6th axis |
Rexroth, Germany |
Repeatability: +/-0.005mm |
| 4 |
7th axis spindle |
servo motor |
max. 10000rpm,
max. dia. of round cutter: 60mm
min. dia. of round cutter: 40mm |
| 5 |
Transmission components |
Rexroth, Germany |
Repeatability: +/-0.005mm |
| 6 |
Operation |
SYNTEC system |
10.1'' touch screen |
| 7 |
Servo motor |
|
400w/ 200w |
| 8 |
Main spindle |
electric |
2.5kw, max. speed 60000 rpm
water cooling with flow-alarm |
| 9 |
Tool magazine |
servo-drive |
Up to 12 tools |
| 10 |
Tool holder |
|
ISO 10 |
| 11 |
Collet chuck |
|
ER-11 |
| 12 |
Lubrication |
|
Timing automatic oiling |
| 13 |
Working flatness |
|
+/-0.005mm |
| 14 |
X axis stroke |
|
300mm |
| 15 |
Y axis stroke |
|
105mm |
| 16 |
Z axis stroke |
|
115mm |
| 17 |
Body weight |
|
0.6 tons |
| 18 |
Front door |
|
single swinging door |
| 19 |
Layout (mm) |
main body |
700 width*880 depth*1560 height |
| 20 |
Power requirement |
|
220v/50hz |
Support and Services:
Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade
Packing and Shipping:
Fumigation wooden case by sea or by air
FAQ:
Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
