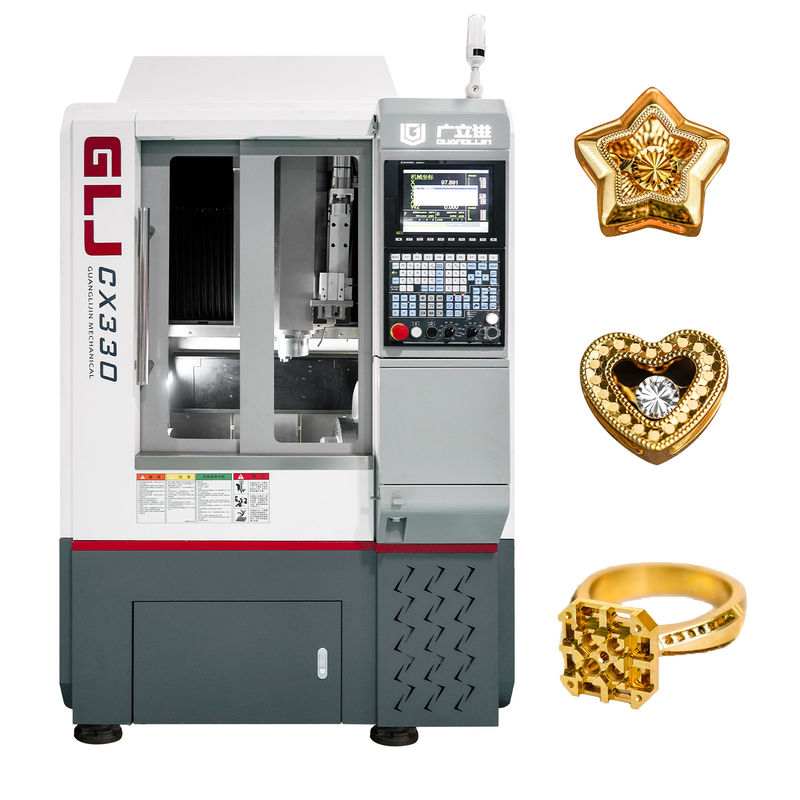

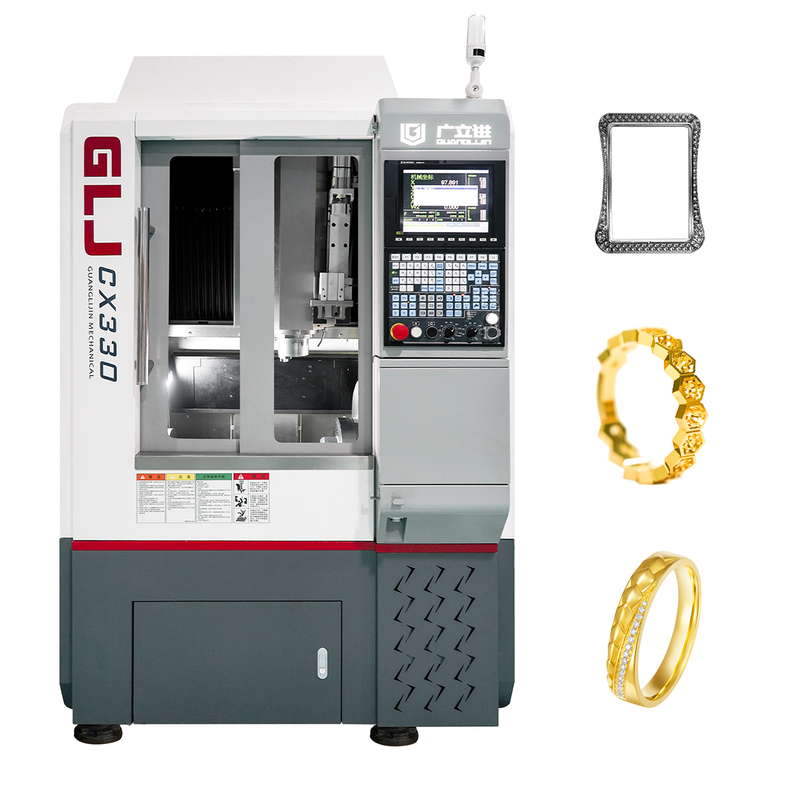

G5-330 Ring Cnc Machine Turning And Milling Machining Center

Place of Origin China
Brand Name GUANGLIJIN
Certification CE Certificate
Model Number G5-330 Turning And Milling Machining Center
Product Details
Highlight:

G5-330 ring cnc machine

,

Turning And Milling Machining

,

Milling Machining Center

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Fumigation wooden frame - in line with international standards
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
100 units/month
Product Description

Technical Parameters:

G5-330 Machine Center
No. Item Details
1 B axis reducer DD motor Rated torque 20n.m,
Max. torque 60n.m,
2 C axis reducer DD motor Rated torque 436n.m,
Max. torque 1200n.m,
3 Transmission components Rexroth, Germany Repeatability: +/-0.002m
4 Operation SYNTEC system 220MA-10.4 inch screen operation box
5 Servo motor   750w
6 Spindle electric 8kw, max. speed 36000 rpm
water cooling with flow-alarm
7 Tool magazine servo-drive Up to 21 tools
8 Tool calibration auto setting speed 50-200mm/min, accuracy 0.002mm
9 Tool holder   HSK E32
10 Collet chuck   ER-20
11 Accuracy compensation Linear encoder from Heidenhain, Germany accruacy: +/-2um, max. interpolation errors +/-0.1um, with atmoseal protection
12 Lubrication   Timing automatic oiling
13 Working flatness   +/-0.002mm
14 X axis stroke   200mm
15 Y axis stroke   380mm
16 Z axis stroke   280mm
17 Body weight   3 tons
18 Front door   sliding door
19 Layout (mm) main body 1710 width*1220 depth*2100 height
20 Power requirement three-phase 380v/50hz
21 Optional configuration auto rod holder max. dia. 25mm
22 manual chuck
23 auto chuck can cooperate with robot
24 laser tool calibration Renishaw, UK
25 Nodular cast iron, gantry type milling, regular milling diameter is 200mm, max. milling size can be 300*300mm; need constant temperature workshop to ensure linear encoder accuracy.


G5-330 Ring Cnc Machine Turning And Milling Machining Center 0

Support and Services:

Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade

Packing and Shipping:

Fumigation wooden case by sea or by air



FAQ:

Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
