G11-550 Vertical Horizontal Double Spindle Engraving Milling Batch Compound Machine
  • G11-550 Vertical Horizontal Double Spindle Engraving Milling Batch Compound Machine
  • G11-550 Vertical Horizontal Double Spindle Engraving Milling Batch Compound Machine
  • G11-550 Vertical Horizontal Double Spindle Engraving Milling Batch Compound Machine
  • G11-550 Vertical Horizontal Double Spindle Engraving Milling Batch Compound Machine
  • G11-550 Vertical Horizontal Double Spindle Engraving Milling Batch Compound Machine
  • G11-550 Vertical Horizontal Double Spindle Engraving Milling Batch Compound Machine

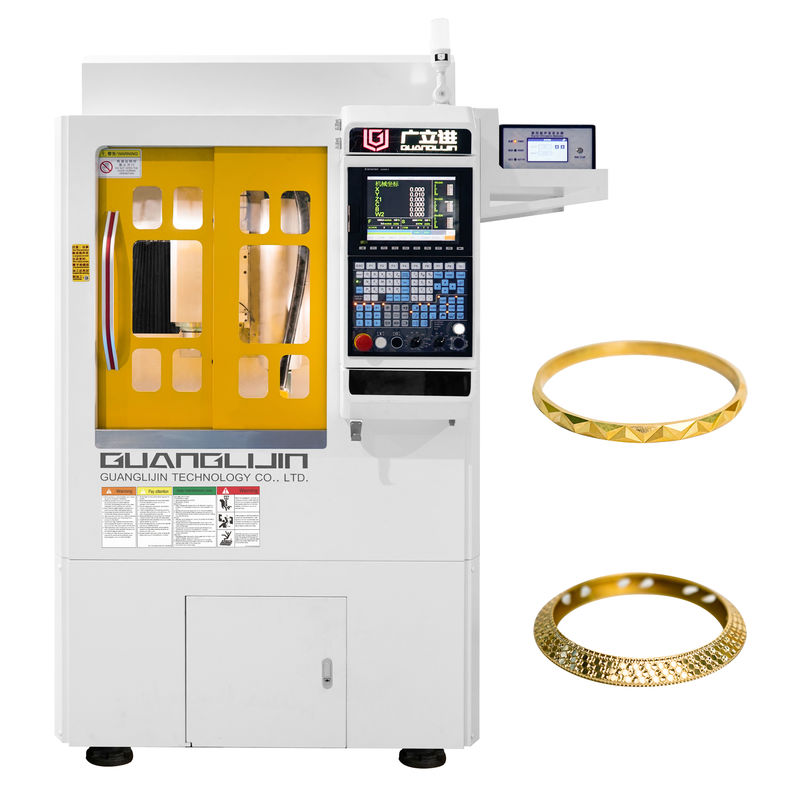

G11-550 Vertical Horizontal Double Spindle Engraving Milling Batch Compound Machine

Place of Origin China
Brand Name GUANGLIJIN
Certification CE Certificate
Model Number G11-550 Vertical and horizontal double spindle engraving and milling batch compound machine
Product Details
Vertical Spindle Speed:
3.7 Kw/40000 Rpm
Servo Motor Power:
200W/400W/750W
XYZ Axis Running Reciprocating Accuracy:
± 0.01/300mm
XYZ1Z2 Stroke:
500 * 130 * 190 * 140
Weight:
2 Tons
Horizontal Spindle Speed:
2.5 KW/60000 Rpm
Machine Tool Appearance Size:
1150 * 1130 * 2100
Repeat Positioning Accuracy:
± 0.003 Mm
Working Flatness:
± 0.005 Mm
Power Configuration:
Three-phase Four-wire 380V/50HZ
Highlight:

Vertical cnc necklace

,

engraving batch compound machine

,

milling batch compound machine

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Fumigation wooden frame - in line with international standards
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
100 units/month
Product Description

G11-550 Vertical and horizontal double spindle engraving and milling batch compound machine

Product Description:



1. Designed for precious metal processing industry, the metal recovery rate of up to 99.95% .
2. Whole machine cast iron type gantry body structure, stable performance.
3. Four axis are used in the Japanese brand reducer, good stability and high precision.
4. Internal full-sealed servo high-speed disc tool library, can accommodate 15 tools, to achieve tool change time 5-6 seconds, high efficiency.
5. Ball guide, screw and transmission components are used in Germany Rexroth original factory accessories.
6. The use of Taiwan's new generation system, simple and convenient operation, stable performance, high versatility in the industry.
7. On the basis of the traditional three-axis processing sheet, the function of turning shaft is added to make one-time clamping process to two sides.
8. With our independent research and development of one-button programming software to generate batch flower processing procedures, synchronous processing steps simple, fast and efficient.
9. In carving and milling batch compound while adding laser cutting function, processing corner without r-angle, cutting speed is faster.



Features:

  • Product Name: eleven axis jewelry making machine
  • Servo motor power: 200W/400W/750W
  • XYZ1Z2 stroke: 500 * 130 * 190 * 140
  • Application: Jewelry Making Industry
  • Features:
    • High Precision
    • Multi-functional
    • Easy To Operate
  • Machine Tool Appearance Size: 1150 * 1130 * 2100
  • Description: Vertical and horizontal double spindle engraving and milling batch compound machine, jewelry making machine

Technical Parameters:

Servo motor power 200W/400W/750W
XYZ axis running reciprocating accuracy ± 0.01/300mm
Machine Tool Appearance Size 1150 * 1130 * 2100
Weight 2 Tons
Servo Motor 200W/400W/750W
Application Jewelry Making Industry
Type Jewelry Making Machine
XYZ1Z2 Stroke 500 * 130 * 190 * 140
Features High Precision, Multi-functional, Easy To Operate
Control System CNC

G11-550 Vertical Horizontal Double Spindle Engraving Milling Batch Compound Machine 0

Applications:

The guanglijin Vertical and horizontal double spindle engraving and milling batch compound machine G11-550 is a high precision, multi-functional, easy-to-operate jewelry making machine. It is equipped with a CNC control system and is CE certified.

The G11-550 is a versatile machine that can be used in a variety of jewelry making scenarios. Its engraving device is perfect for creating intricate designs and patterns on metal surfaces. This makes it ideal for creating custom jewelry pieces, as well as for mass production of jewelry items.

The machine's high precision and accuracy make it suitable for use in a range of jewelry making applications. It can be used for creating intricate filigree designs, engraving text and logos, and cutting intricate shapes from metal sheets.

The G11-550 is also easy to operate, making it suitable for use by both experienced jewelry makers and those who are new to the craft. Its user-friendly interface allows for quick and easy setup and operation, while its advanced features provide the flexibility and precision needed for complex jewelry making tasks.

Support and Services:

The eleven axis jewelry making machine product comes with comprehensive technical support and services to ensure that our customers have a smooth experience with our product. Our technical support team is available to provide assistance with installation, setup, and troubleshooting. We also offer training services to help our customers maximize the potential of the machine and achieve their jewelry making goals. In addition, we provide regular maintenance and repair services to ensure that the machine operates at optimal performance. Our services are designed to help our customers get the most out of their investment in our product.

Packing and Shipping:

Product Packaging:

  • Eleven Axis Jewelry Making Machine
  • Power cord
  • Shipped in a sturdy cardboard box to ensure safe delivery

FAQ:

Q: What is the brand name of the jewelry making machine?

A: The brand name of the jewelry making machine is guanglijin.

Q: What is the model number of the jewelry making machine?

A: The model number of the jewelry making machine is Vertical and horizontal double spindle engraving and milling batch compound machine G11-550.

Q: What is the place of origin of the jewelry making machine?

A: The jewelry making machine is manufactured in 101/F and 201/F,Building27,Lianchuang Science and Technology Park,21 BulanRoad, Xialilang Village,Nanwan Street, Shenzhen.

Q: Is the jewelry making machine certified?

A: Yes, the jewelry making machine is certified with CE Certificate.
